Sump Pumps

Industrial grade sump pumps for the residential market

Not all sump pumps are created equal!

Our full line of PHCC Pro Series primary pumps are built to run continuously 24 hours a day, seven days a week, 365 day a year. They are strong and dependable, and when they are used intermittently in a sump application, it extends the life of the pump. We back this up by offering up to 5 year warranties when the pumps are used in intermittent applications. A one year warranty is available when used in continuous duty application such as fountains or ponds.

Backup Sump Pumps

Designed for the Professional Contractor

No AC sump pump will work when the power is out. For added protection and peace of mind, install a battery backup sump pump system. The PHCC Pro Series backup sump pumps have unique monitoring system that sound an alarm when maintenance is needed, or when a problem arises. After all, a backup sump pump system with a dead battery, loose cables, or a clogged pump is like having no backup at all. The PHCC Pro Series backup sump pumps monitor all these functions and remind the homeowner when attention is needed. Easy to follow instructions are found on the front panel of the controllers to make the proper adjustments.

Pro Series Primary AC Sump Pump ST Series Sump Pumps



  • Cast iron/cast aluminum construction
  • Energy efficient permanent split capacitor (PSC) motor
  • Piggy-back dual float switch with protective cage
  • Continuous duty rated
  • 3 year warranty
  • Dual carbon/ceramic seals
  • 10’ power cord
  • Will fit in 10” diameter sump pit
  • 18-month warranty
  • Water cooled



S2033 Sump Pump

  • 3,200 GPH (53 GPM) at 10 ft. lift
  • 1/3 HP pump
  • Energy efficient permanent split capacitor (PSC) motor
  • Premium pump construction
    • Cast iron vortex impeller
    • Upper and lower sealed ball bearings for ultra-quiet operation
    • Stainless steel fasteners for long life
    • Carbon / ceramic seals plus
      (1) Buna-N-Seal
    • Thermally protected
    • 10’ power cord
  • 1-1/2” discharge
  • Pumps solids up to 1/2″
  • Strainer included
  • S2 Series Energy Savings: Average $45* per year
  • 4 Year warranty when purchased from and installed by a contractor, otherwise 3 year

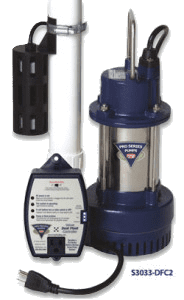

S3 Series Sump Pumps

  • Cast iron / stainless steel construction
  • Energy efficient permanent split capacitor (PSC) motor
  • Continuous duty rated
  • Stainless steel shaft
  • Dual carbon/ceramic seals
  • 20′ Pump cord (S3050 & S3100), 10′ Pump cord (S3033)
  • 5 year warranty
  • Water cooled

Energy Savings

  • Permanent split capacitor (PSC) motor and dual ball bearings allow for lower amp draw
  • S3 series will save an average of $55 per year (assumes industry average of 9.5 amps for HP ⅓ pumps and 10.5 amps for ½ HP pumps, $0.12 per kilowatt hour and running time of 5 minutes per hour)
  • Pump will pay for itself in just a few years
  • The S3033 pumps 6.2 gallons per watt hour (G/Wh) used, which is 180% more efficient than the competitive average of ⅓ HP sump pumps.
  • The S3050 pumps 7.6 gallons per watt hour (G/Wh) used, which is 185% more efficient than the competitive average of ½ HP sump pumps.

PHCC Pro Series 2400 Battery Backup Sump Pump System

  • Automatically switches to battery power when AC fails
  • Recharges automatically
  • Monitors system conditions and alarms when:
    • Battery needs water, is discharged or needs to be replaced
    • Battery cable is loose or corroded
    • Power plug is disconnected, fuse is blown or circuit breaker is tripped
    • Pump is clogged or broken
    • Backup pump has been activated
  • Alarm can be silenced during a power outage
  • Displays percentage of power remaining in the battery
  • Runs pump weekly to test for proper operation
  • Can run directly on AC power
  • Output terminals for connection to a security system or auto-dialer – Let the system call you
  • 4 year warranty
  • Accommodates up to two (2) B-2200 batteries for 100 hours of pumping*
  • Designed for use with maintenance or maintenance free batteries

* Based on 10% duty cycle. Run times may vary based on inflow of water
